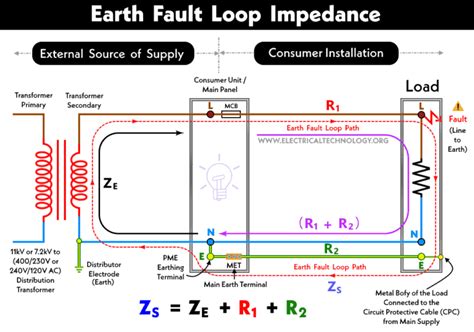

Earth Fault Loop Impedance. Total Earth Fault Loop Impedance Zs = Ze + R1 + R2 for TNS and TNCS Earthing Arrangements Understanding Earth Fault Loop Impedance is important for electrical safety, ensuring effective fault clearance and preventing hazards This blog takes a deep dives into the AS/NZS3000 standard, detailing methods for calculating and verifying impedance
from
The method of measurement for the phase-to-earth loop impedance is to connect a resistor from phase to earth so Accurate measurement is crucial to confirm that the impedance is within permissible limits.
The Earth fault loop impedance test involves measuring the resistance across the fault loop, which includes the active conductors, protective earthing system, and all connections within the circuit The following will affect the value of earth fault loop impedance: Earth Resistance; Cable Resistance; Transformer Impedance; Among the three values, only the size of the cable can be readily and practically be changed in case during verification the EFL does not conform with the requirement The earth fault loop impedance is simply the magnitude of Z t.
Earth Fault Loop Impedance (Zs) theRegs BS7671 18th Edition Online Training. The earth fault loop impedance is simply the magnitude of Z t. The following will affect the value of earth fault loop impedance: Earth Resistance; Cable Resistance; Transformer Impedance; Among the three values, only the size of the cable can be readily and practically be changed in case during verification the EFL does not conform with the requirement
. For common configurations, the maximum earth fault loop impedance is calculated (but can be overridden by the user). Ze - earth fault loop impedance external to the supply (R1+R2) - Sum of the resistance of Line and Earth for the tested circuit
